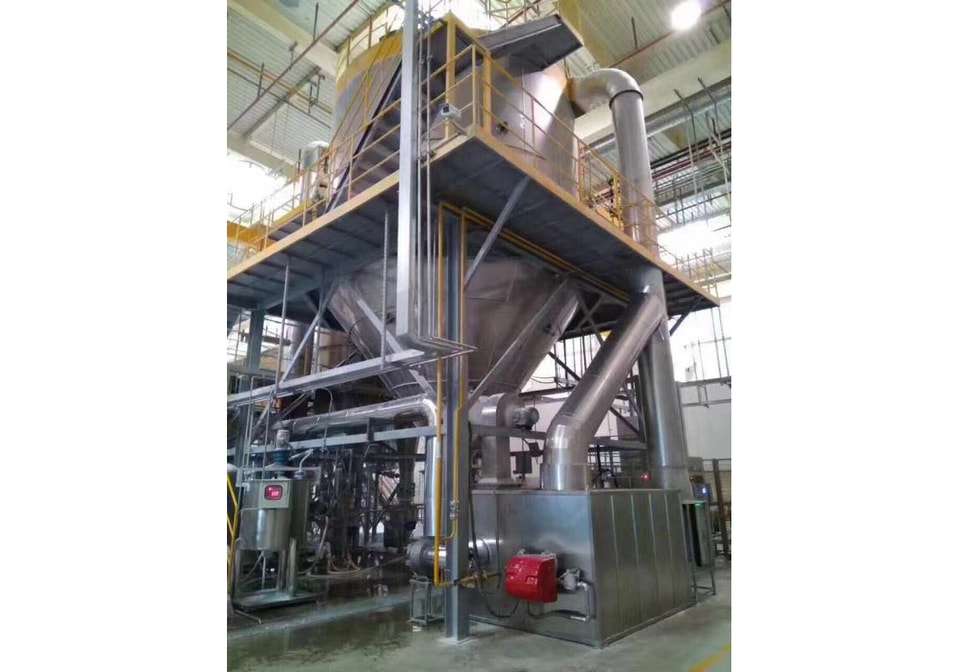

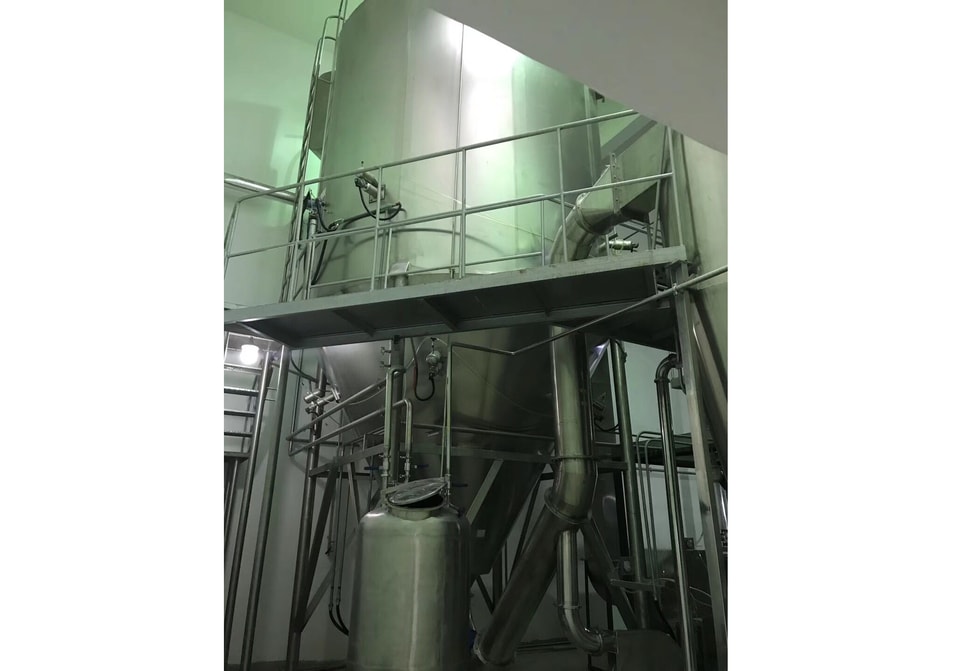

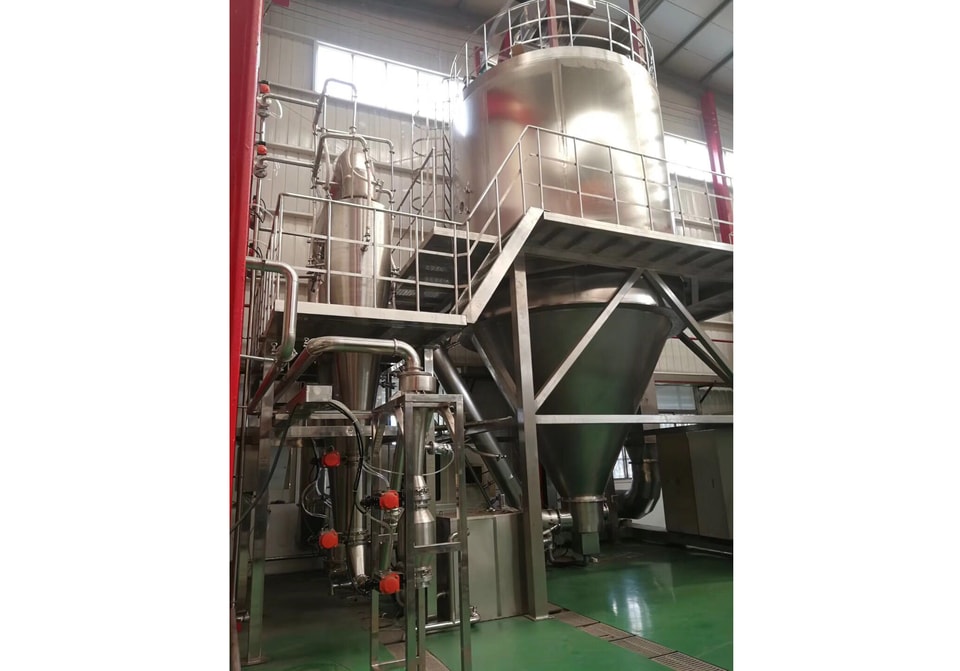

Herbal Medicine Extract Spray Dryer

The ZLPG series of traditional Chinese medicine extraction spray drying machines are suitable for drying equipment with low melting points and high sugar -containing Chinese medicine products, and have the characteristics of non -stick walls, materials non -raising, and not easy to absorb moisture. The device determines the process conditions of spray drying according to the characteristics and nature of dry products. The degree of automation is high, the operation is convenient, and it meets the GMP requirements. The successful development of this device has solved many technical difficulties in traditional Chinese medicine products with low melting points and high sugar -containing products over the years, and it is also a new development of application technology research on spray drying in Chinese medicine and pharmaceuticals.

Basic principle of traditional Chinese medicine extract spray drying machine
Chinese medicine extract high -speed centrifugal spray device is the application of centrifugal spray drying technology in the drying of specific material. It also uses a high -speed centrifugal atomizer to disperse the material into fog -shaped, fully contact with hot air, complete instant drying, form powder to form powder Dry device of the finished product.

The dedicated dryer of traditional Chinese medicine is a spray dryer specifically used to solve traditional Chinese medicine extract and plant extraction solution. It solves the following situations where the material appears in the drying of the original LPG high -speed spray dryer in the drying of the Chinese medicine extract:
1. Material sticky wall, low powder collection rate;
2. The material stays on the wall for a long time, and the coking deterioration of the material is produced;
3. It is difficult to clean and does not meet the GMP requirements;
4. Low yield: LPG-150 spray dryer, its output can only be treated with 50-60kg/h material solution.

In view of the above situation, the fact that our factory designs the problem of the drying machine of the dryer of traditional Chinese medicine according to the material nature and process of the Chinese medicine extract. The spray dryer has the following characteristics:
1. The third -level air purification is adopted to make the wind in the air in 300,000;
2. A cold wall device is used to make the inner wall temperature reaches 80 ° C, and the material stays on the wall and does not focus;
3. The entire volume is 3.5 times that of the original LPG standard centrifugal spray;
4. Using fast -opening rinse device, it is suitable for multi -variety production requirements;
5. The dust removal uses a wet dust removal to make the dust go out without going out, which meets environmental protection requirements;
6. The effect of using gas sweeping device is more satisfactory;
7. Adopt PLC control, the screen control system screen display;
8. Can be equipped with a rinse device;
9. You can use dry air closed transmission.
