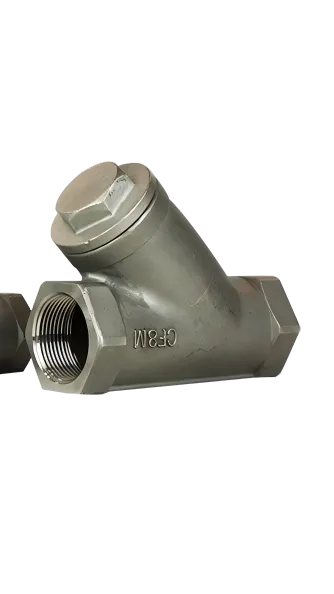

LXHQ-Y filter

Product Overview:

LXHQ-Y filter is a kind of mechanical filtering equipment commonly used in pipeline system. It is of "Y" structure and installed at the medium inlet end to capture and remove solid particles, impurities, welding slag, rust, etc. In the fluid. It can effectively protect the normal operation and service life of key equipment such as pumps, valves, flowmeters and nozzles, and is widely used in pipeline systems of water, steam, oil, gas and various corrosive media.

Product features:

Imple structure, small flow resistance, convenient pollution discharge and high filter efficiency

Y-type inclined design, sediment is not easy to backflow, cleaning is easier Filter can be removed online for easy maintenance and replacement

Widely used in various liquids, gases, steam and other media

A variety of filter precision options to meet the needs of different working conditions

Optional stainless steel mesh core for high temperature, high pressure or corrosive fluids

Supports installation in horizontal or vertical ducts for flexibility

Technical parameters:

Nominal diameter: DN15 ~ DN600 (1/2 "~ 24")

Nominal pressure: PN10/PN16/PN25/PN40/ANSI 150LB ~ 300LB

Applicable temperature: -20 ° C ~ + 450 ° C (depending on the material of valve body and seal)

Valve body material: carbon steel WCB, stainless steel 304/316, nodular cast iron, PVC, copper, etc.

Filter material: stainless steel 304/316L (single-layer or multi-layer sintered mesh is optional)

Filter fineness: 10 mesh ~ 500 mesh (customizable)

Connection mode: flange connection, threaded connection, butt welding connection, socket connection, etc.

Blowdown mode: screw plug blowdown/quick-opening cover blowdown/automatic blowdown device (optional)

Installation mode: horizontal installation is preferred, and vertical installation is also supported (media flows from top to bottom)

Application industry:

Industrial water treatment system

Petroleum, natural gas and chemical industry

Heating Ventilation and Air Conditioning (HVAC)

Boiler feed water pipe and condensate water system

Food, beverage and pharmaceutical water

Steam and water pipeline of power plant Fire pipe network and sprinkler system

Dust and slag removal system for gas pipelines
