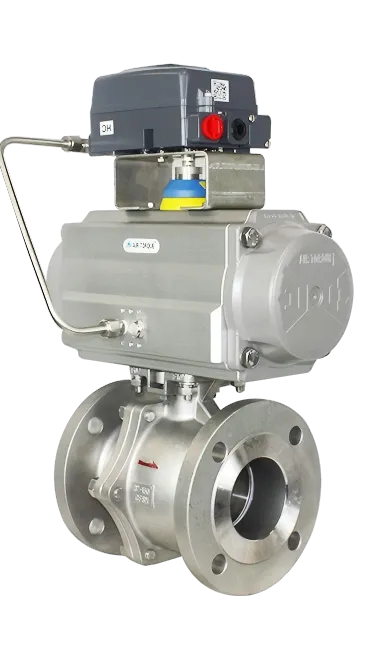

LXHQ Pneumatic regulating ball valve

Product Overview:

LXHQ pneumatic regulating ball valve is driven by pneumatic actuator, combined with V-shaped ball core, slotted ball core or special flow channel ball core design, to achieve high-precision proportional regulation function. The valve not only has the advantages of simple ball valve structure, rapid opening and closing, small flow resistance and good sealing performance, but also has good linear regulation characteristics, can accurately regulate fluid flow, is an important regulating element in industrial automation process control, and is widely used in chemical, petrochemical, papermaking, electric power, metallurgy, food, medicine, water treatment and other industries.

Product features:

Fast response and high adjustment accuracy

V-shaped ball core design for linear or equal percentage flow adjustment

Low flow resistance, large flow, small pressure loss

Excellent sealing performance, leakage level up to Class VI

High reliability and easy maintenance of pneumatic actuator

It is suitable for high frequency opening and closing and continuous regulation.

Smart positioner for accurate 4 to 20 mA signal adjustment

Optional explosion-proof and electric integrated intelligent positioner

Combination of various materials to meet different medium working conditions

Anti-blocking design, suitable for media containing particles and fibers

Technical parameters:

Nominal diameter DN15 ~ DN500

Nominal pressure PN10/PN16/PN25/PN40/ANSI 150LB/300LB

Applicable temperature: -40 ° C ~ + 250 ° C (depending on material)

Valve body material WCB/CF8/CF8M/2205/alloy steel/special material

Ball Core Type Standard/V-Notch/Slotted/O-Type Full Bore

Sealing material PTFE/RPTFE/PEEK/metal hard seal

Leakage Class ANSI Class VI (soft seal)/Class IV ~ V (metal seal)

Actuator Single-acting/double-acting pneumatic actuator

Control signal 420mA DC + air source pressure 0.40.7 MPa

Connection type Flanged/Wafer/Threaded/Welded

Application industry:

Petrochemical Process Control

Fine chemical flow regulation

Regulation of steam and slurry in papermaking industry

Power plant cooling water and boiler water regulation

Water treatment and environmental protection industry

Food and beverage industry

Medical process equipment

Air separation plant regulating system

Natural gas/gas transmission system

Mining and metallurgical industry
