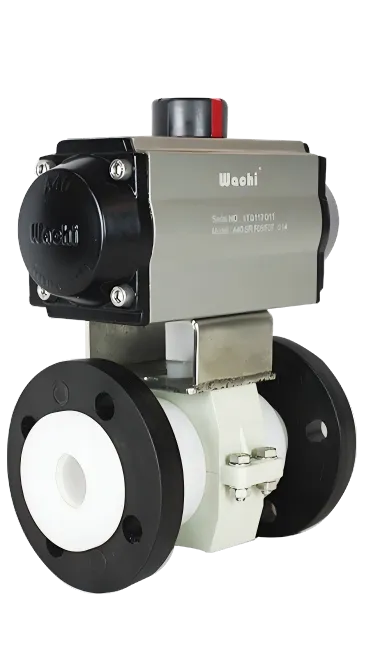

LXHQ plastic valve
Product Overview:
LXHQ plastic valve is a kind of industrial valve made of thermoplastic plastics (such as PVC, CPVC, PP, PVDF, PFA, PE, etc.), which has excellent corrosion resistance, lightweight, strong insulation and other characteristics, and is widely used in chemical, water treatment, electroplating, food, semiconductor, environmental protection and other industries. It is especially suitable for pipeline systems transporting acid and alkali, salt water, pure water and corrosive media.
Product features:
Strong corrosion resistance: suitable for strong acid, alkali, salt, chloride and other media
Light weight and easy installation: easier to handle and construct than metal valves
High circulation capacity, smooth inner wall, not easy to scale or accumulate dirt
Non-conductive and electrolyte-resistant, ideal for electroplating and ultrapure water systems
Support multiple operation modes: manual, electric and pneumatic
Excellent sealing performance, long-term use is not easy to leak
Optional full-bore design reduces flow resistance and energy consumption
Beautiful appearance, good weather resistance, suitable for indoor and outdoor systems
Technical parameters:
Diameter range: DN10 ~ DN400 (1/4 "~ 16")
Pressure rating: PN6/PN10/150 PSI/232 PSI (depending on material and standard)
Applicable temperature: 0 ° C ~ + 95 ° C (PVC), ~ 110 ° C (CPVC), ~ 140 ° C (PVDF)
Valve body material: UPVC, CPVC, PP, FRPP, PVDF, PFA, HDPE, etc.
Sealing material: EPDM, FPM (Viton), PTFE, etc.
Valve type: ball valve, butterfly valve, diaphragm valve, check valve, globe valve, gate valve, etc.
Connection mode: socket, flange, thread, butt welding, clamp, etc.
Driving mode: handle, electric, pneumatic (remote control can be realized with control box)
Installation mode: horizontal or vertical, some valve types support inverted installation
Application industry:
Chemical transfer and storage tank system
Electroplating Pickling and Metal Surface Treatment
Pure water, ultrapure water, RO system
Agricultural irrigation and drip irrigation system
Food, beverage and pharmaceutical industries (FDA-compliant materials)
Ultra-clean convey system for semiconductor industry
Industrial wastewater and reuse water system
Piping system for corrosive liquid in laboratory
Seawater Desalination and Brine Treatment Project
