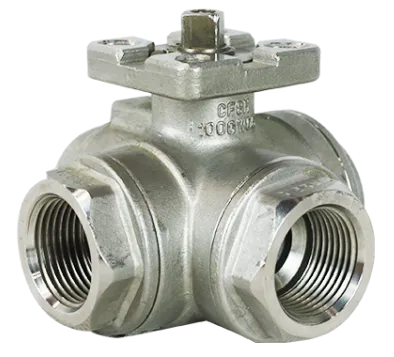

LXHQ-MT/LT Three-way T/L type reduced bore internal thread ball valve

Product Overview:

LXHQ-MT/LT three-way T/L type reducing internal thread ball valve is a multi-functional three-way ball valve, which adopts "T-type" or "L-type" ball core structure, and realizes the confluence, diversion and reversing control of the medium through rotation. Internal thread connection (usually BSP, NPT and other standards), easy to install, especially suitable for small and medium orifice runoff system. The reduced diameter design optimizes the overall size of the valve, reduces the weight and the cost, and is widely used in various fluid control occasions in the industries of petroleum, chemical industry, pharmacy, food, air conditioning, heating and ventilation, water treatment and the like.

Product features:

T-shaped ball core: three ports are interoperable, which can realize confluence, shunt and circulation control

L-shaped ball core: two ports are intercommunicated to realize reversing and switching Internal thread connection, easy installation and maintenance, suitable for medium and small diameter pipelines

Reduced diameter design, effectively reduce the volume and weight of the valve, high cost performance

Fully enclosed ball core, flexible rotation, easy to open and close

High-quality sealing material of valve seat (such as PTFE), excellent sealing performance and long service life

Applicable to a wide range of media, such as water, oil, gas, corrosive media

Optional manual, electric and pneumatic actuators, supporting automatic control

Typical Specifications:

Nominal diameter: DN8 ~ DN100 (1/4 "~ 4")

Pressure class: PN16 ~ PN40/1000 WOG/2000 WOG (according to specific standard)

Temperature range: -20 ° C ~ + 180 ° C (depending on valve body and seal material)

Valve body material: stainless steel (CF8, CF8M), WCB, brass, etc.

Connection standard: BSP (G thread), NPT, American thread, etc.

Drive mode: handle manual, electric, pneumatic

Application industry:

Petrochemical industry

Food and beverage

The pharmaceutical industry

Heating Ventilation and Air Conditioning (HVAC) System

Water treatment

Natural Gas and General Industrial Piping Systems

Switching control system for various liquid, gas and steam media
