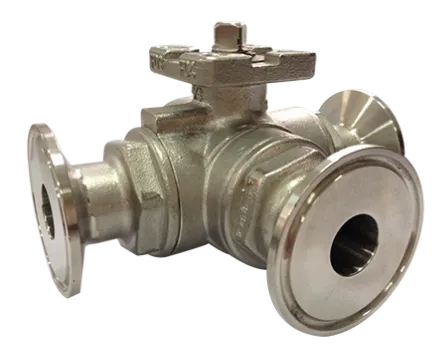

LXHQ-MT/LC Three-way T/L type reduced bore high platform clamp ball valve
Product Overview:
LXHQ-MT/LC 3-way T/L reduced diameter high platform clamp ball valve is a multi-functional 3-way ball valve specially designed for sanitary and quick assembly and disassembly scenarios. The high platform design allows for direct mounting of electric or pneumatic actuators without the need for additional brackets. Clamp type connection, quick disassembly and assembly, easy to clean and maintain, in line with CIP/SIP (online cleaning/online sterilization) requirements. The T-shaped or L-shaped ball core structure can flexibly realize the confluence, shunting, reversing and switching functions of the medium, and is widely applied to fluid control systems with high requirements on cleanliness and convenient maintenance in the industries of food, beverage, pharmacy, bioengineering and the like.
Product features:
T-shaped ball core: three ports are interoperable, which can be used for confluence, shunt and circulation switching
L-shaped ball core: two intercommunicating ports, mainly used for medium reversing and switching
High platform design facilitates direct connection of actuators and simplifies automation transformation
Fast-assembly connection, easy disassembly, suitable for sanitary working conditions, easy to clean and maintain
Reduced diameter design to optimize volume and save installation space
The inner cavity has high smoothness, meets the hygienic standard, is not easy to accumulate dirt, and reduces the risk of cross contamination.
Fully enclosed ball core, flexible opening and closing, excellent sealing performance
Applicable to a variety of driving modes: manual, electric, pneumatic
Support CIP/SIP cleaning and sterilization requirements
Optional explosion-proof actuator to meet special process requirements
Typical Specifications:
Nominal diameter: DN15 ~ DN100 (1/2 "~ 4")
Pressure rating: PN10 ~ PN16
Temperature range: -10 ° C to + 180 ° C (depending on body and seal material)
Valve body material: stainless steel 304, 316L
Sealing material: PTFE, FDA certified food grade seals
Connection mode: clamp (quick assembly) interface (conforming to ISO/DIN/3A/SMS and other sanitary standards)
Drive mode: handle manual, electric, pneumatic
Application industry:
Food processing (dairy, beer, beverages)
Pharmaceutical, biopharmaceutical
Production of cosmetics
Fine Chemical Industry
Sanitary water treatment
Alcohol and fermentation process system
