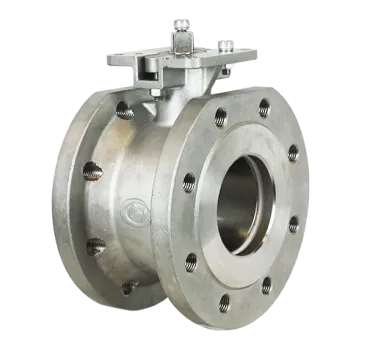

LXHQ-M1WF One-piece thin-bowl type flanged ball valve
Product Overview:
Product features: Low torque, high performance; key to cost reduction and customer focus; we can do it.
ISO5211standard actuator connection platform design, enjoy more installation convenience.
Explosion-proof valve stem and anti-static valve stem are our standard products.
We promise "zero" leakage because the true roundness of the steel balls we manufacture is unmatched.
A variety of material seat options, can be applied with different media. Handle with locking function and other special designs. We can also meet the special control requirements.
Technical parameters:
Nominal diameter: DN15 ~ DN200 (1/2 "~ 8")
Nominal pressure: PN16/PN25/PN40/ANSI 150LB ~ 300LB
Applicable temperature: -29 ° C ~ + 450 ° C (depending on surfacing material and structure)
Valve body material: carbon steel WCB, stainless steel CF8/CF8M, alloy steel, dual-phase steel, etc.
Ball material: stainless steel surfacing STL/Ni60/WC and other wear-resistant alloy
Connection mode: flange (GB/ANSI/DIN and other standards)
Driving mode: handle, electric, pneumatic, hydraulic
Application industry:
Chemical
Oil & gas
Food & Beverage
Machinery and equiliment.
The engineering vehicle
Air conditioning facilities
General liiliing
