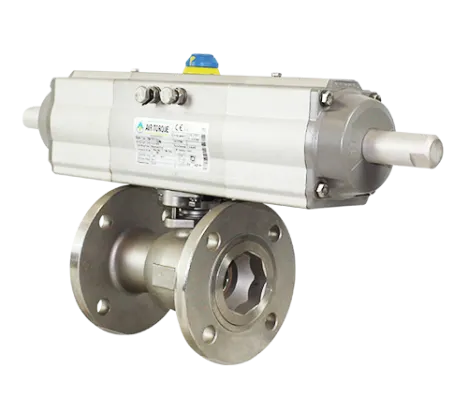

LXHQ-M1F One-piece reduced bore flanged ball valve

Product Overview:

The LXHQ-M1F one-piece reduced diameter flanged ball valve is a compact, economical and durable industrial ball valve. It adopts an integrated valve body structure and a reduced diameter flow passage design with small flow resistance. It is suitable for fluid control systems with certain requirements for installation space and cost. Flange connection, easy installation, reliable sealing performance, widely used in petroleum, chemical industry, HVAC, building water supply and drainage, light industry and other industries in the pipeline system.

Product features:

One-piece integrated valve body, simple structure, reduce leakage points, improve strength and safety

Reduced diameter design, optimized flow passage, balanced flow and cost, reduced weight

Flange connection, standardized interface, easy installation and maintenance

Quick opening and closing, 90 ° rotation operation, convenient for automatic transformation

High-performance sealing, supporting two-way sealing, excellent corrosion resistance, high temperature resistance and pressure resistance

Replaceable valve seat for easy maintenance and lower operating cost

A variety of material options to meet the needs of different working conditions, such as carbon steel, stainless steel, etc.

Manual, electric and pneumatic drive modes are available, and automatic control system integration is supported.

Specifications:

Nominal diameter: DN15 ~ DN200

Pressure rating: PN16 ~ PN40/ANSI 150LB/JIS 10K, etc.

Temperature range: -20 ° C ~ + 180 ° C (depending on material)

Valve body material: carbon steel (WCB), stainless steel (304/316), etc.

Valve seat material: PTFE, RPTFE, metal seal optional

Connection mode: flange connection (GB/T 9113, ANSI B16.5, JIS B2220, etc.)

Drive mode: handle manual, electric actuator, pneumatic actuator

Design standard: API 608, BS 5351, GB/T 12237, etc.

Optional:

Anti-static design; fireproof structure; ISO 5211 high platform, easy to drive the transformation of automation;

Material certificates (3.1), third party test reports are available

Application industry:

Petrochemicals, natural gas, HVAC, building plumbing, food and beverage, water treatment, general industrial fluid control systems
