Product Overview:

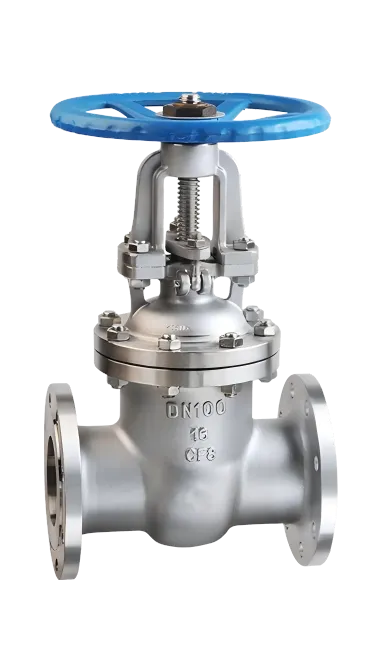

LXHQ gate valve is a kind of switch valve commonly used in fluid pipeline system. It realizes the complete opening or closing of the medium through the vertical lifting of the gate plate. It has the characteristics of small flow resistance, stable opening and closing, compact structure and so on. It is widely used in liquid, gas or steam pipelines in petroleum, chemical industry, electric power, metallurgy, papermaking, water supply, drainage and other industries. It is suitable for cutting off media and is not recommended for flow regulation.

Product features:

Wedge-shaped or parallel gate structure, reliable sealing and long service life

Channel straight-through structure, small flow resistance, not easy to scale or cause pressure loss

Optional soft seal or metal seal, suitable for different media and temperature requirements

It is easy to open and close, and can be equipped with hand wheel, electric, pneumatic, hydraulic and other driving modes.

Optional rising stem structure (stem lifting visible) or non-rising stem structure (compact and space-saving)

Can realize bidirectional sealing, and the installation direction is not limited

Sturdy construction, easy maintenance, suitable for frequent operation and long-term use

Applicable to various connection forms: flange, butt welding, thread, clamp, etc.

Technical parameters:

Nominal diameter: DN15 ~ DN1200

Nominal pressure: PN10/PN16/PN25/PN40/ANSI 150LB ~ 600LB

Applicable temperature: -29 ° C ~ + 600 ° C (depending on the seal and material)

Valve body material: cast steel WCB, stainless steel CF8/CF8M, ductile iron, alloy steel, etc.

Gate material: stainless steel, carbon steel, alloy steel, hard alloy surfacing, etc.

Sealing material: PTFE, flexible graphite, metal sealing surface, EPDM, etc.

Connection mode: flange, butt welding, thread, clamp (sanitary type)

Drive mode: hand wheel, electric drive, pneumatic drive, chain wheel, hydraulic drive

Structure type: rising stem wedge type, non-rising stem wedge type, parallel type, elastic seat seal type, etc.

Application industry:

Petrochemical system (crude oil, water, steam, gas)

Thermal power plant and thermal energy system

Water works (tap water, sewage, circulating water)

Urban Heating and Building Water Supply and Drainage System

Metallurgical Mines and Iron and Steel Enterprises

Clean pipes for food, pharmaceutical and daily chemical industries (made of stainless steel)

Natural gas and pipeline transportation system
