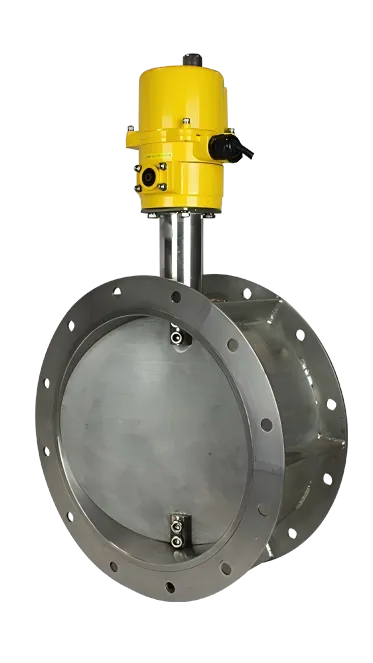

LXHQ Damper

Product Overview:

LXHQ damper is a device used to regulate the flow of air or flue gas, which is widely used in boiler air supply, induced draft system, ventilation duct, dust removal equipment, environmental protection engineering and air conditioning system. The air door realizes the on-off or continuous adjustment of the flow through a rotating baffle or a sliding plate surface, has the characteristics of simple structure, flexible adjustment, rapid opening and closing and the like, can be controlled manually, electrically or pneumatically, and is suitable for various working conditions such as normal temperature, high temperature, corrosion, dust and the like.

Product features:

Various structures: round/rectangular, single-axis/multi-axis, louver/push plate optional

It is suitable for air volume regulation, gas diversion, flue partition, hot air circulation and other systems.

It can be equipped with manual, electric and pneumatic actuators with high control precision.

Low pressure loss and low leakage design to improve system energy efficiency

High temperature, corrosion and wear resistant structure can be customized (applicable to flue gas and dust)

With switch type, regulation type, explosion-proof type, anti-corrosion type, anti-condensation type and other expansion types

Solid structure, suitable for outdoor, boiler room, furnace, flue and other heavy load scenarios

Convenient installation and maintenance and long service life

Technical parameters:

Ventilation type: full open, full close, proportional adjustment type

Air door shape: round, square, rectangular, special-shaped (support customization)

Nominal diameter: DN100 ~ DN5000 (rectangular width × height)

Applicable pressure: normal pressure or micro positive pressure (support negative pressure/high pressure in special occasions)

Applicable temperature: -20 ° C ~ + 1000 ° C (depending on material and sealing structure)

Valve body material: carbon steel, stainless steel, heat-resistant steel, aluminum alloy, composite material

Sealing form: soft seal (silica gel/fluorine rubber/ceramic fiber), metal hard seal

Execution mode: manual, electric, pneumatic, hydraulic, electro-hydraulic linkage

Leakage class: Class II ~ IV (high sealing type can be customized)

Connection type: flange connection, plug-in type, welding type, bolt connection type

Application industry:

Air supply/induced draft/flue gas regulation of industrial boiler

Desulfurization and denitration system air duct of power plant

Ventilation and dust removal system for metallurgy, building materials and chemical plant

Air handling and HVAC system (air conditioning and fresh air system)

Exhaust gas/tail gas pipeline control system

High temperature air duct and hot air circulation control

Partition of conveying air path for powder and particle

Air supply and exhaust system for ship, subway and tunnel
