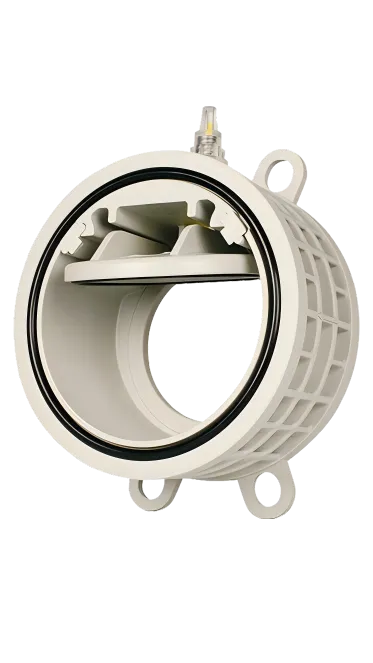

LXHQ check valve

Product Overview:

LXHQ check valve is a kind of automatic opening and closing valve, which uses the flow pressure of the medium itself to push the valve disc to open, and automatically closes when the reverse flow occurs. It is used to prevent the reverse flow of the medium and protect the safe operation of the pump, compressor and equipment. The valve has the characteristics of simple structure, sensitive response, stable work and the like, and is widely applied to fluid pipeline systems of industries such as water supply and drainage, petrochemical industry, electric power, metallurgy, pharmacy, food and the like.

Product features:

One-way flow control of medium to prevent backflow and water hammer

No external drive, automatic opening and closing, reliable operation

Sensitive opening and closing, suitable for low pressure or gravity system

Various structures (lifting type, swing type, butterfly type, ball type) can meet different installation positions

Good sealing performance, suitable for liquid, gas, steam and other media

Clear installation direction, easy maintenance and long service life

Can be installed horizontally or vertically (some structural constraints)

Multiple connection modes to adapt to different pipeline standards

Technical parameters:

Nominal diameter: DN15 ~ DN1200

Nominal pressure: PN10/PN16/PN25/ANSI 150LB ~ 600LB

Applicable temperature: -20 ° C ~ + 450 ° C (depending on the material)

Valve body material: stainless steel (304/316), carbon steel, cast iron, copper, plastic (PVC/PP), etc.

Valve disc material: stainless steel, rubber cladding, alloy steel, polymer, etc.

Sealing material: PTFE, rubber, metal hard seal, flexible graphite

Connection mode: flange, thread, butt joint, welding, clamp, etc.

Opening pressure: 0.001 ~ 0.05 MPa (low opening and closing pressure type can be customized)

Structure type: lifting type, swing type, butterfly type, spherical type, slow closing type, silent type, etc.

Application industry:

Water supply and drainage system and backflow prevention device

Petrochemical and natural gas pipeline network

Power plant cooling system and boiler steam pipeline

Clean system for food, beverage and pharmacy

Fire, Heating, and Air Conditioning (HVAC) Systems

Sewage treatment and rainwater recycling system

Anti-backflow protection for ship and ocean engineering

Protective check in the pump discharge system
