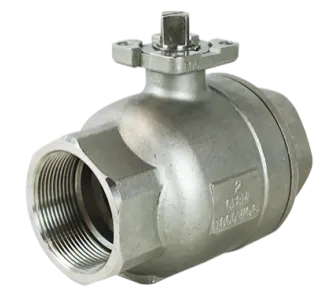

LXHQ-02T/M2T Two-piece threaded/ socket-weld ball valve

Product Overview:

LXHQ-02T/M2T two-piece ball valve adopts precision casting valve body, which is made of two main components connected by bolts, with compact structure, easy maintenance and flexible opening and closing. Threaded end (BSP, NPT) or socket weld (SW) connections are available, and are suitable for fluid control in medium and low pressure small bore piping systems. It is widely used in chemical industry, petroleum, natural gas, heating supply, water supply and drainage and other industries. It is one of the commonly used manual or automatic control components in industrial automation and building systems.

Product Features:

Two-piece structure design, easy to install and maintain

Full diameter or reduced diameter optional, low flow resistance and smooth flow

Threaded or socket welded connection to adapt to different piping methods

Anti-fly-out valve stem design improves operational safety

Anti-static device (optional), suitable for flammable medium working conditions

High-quality PTFE or RPTFE sealing ring, wear-resistant and corrosion-resistant, excellent sealing performance

Can be equipped with electric and pneumatic actuators to realize automatic control (optional)

Suitable for many media: water, oil, gas, steam, weakly corrosive media, etc

Technical parameters:

Nominal diameter : DN8 to DN100 (1/4 "to 4")

Pressure rating: 1000WOG/PN63 (standard), higher pressure can be customized

Applicable temperature:-20 °C ~ + 180 °C (depending on sealing material)

Body material: stainless steel CF8/CF8M (304/316), carbon steel WCB

Ball material: stainless steel 304/316, precision machining and polishing

Seal material: PTFE/RPTFE/PEEK/metal seal (optional)

Connection method: Threaded (BSP, NPT, DIN) or socket weld (SW)

Drive mode: manual, electric, pneumatic (optional)

Valve stem structure: anti-explosion design, with filling gland adjustment device

Test standard : API 598/EN 12266-1

Application industry:

Chemistry

Oil & gas

Steam

Food & beverage

The engineering vehicle

Machinery and equiliment

Air conditioning facilities

General liiliing
