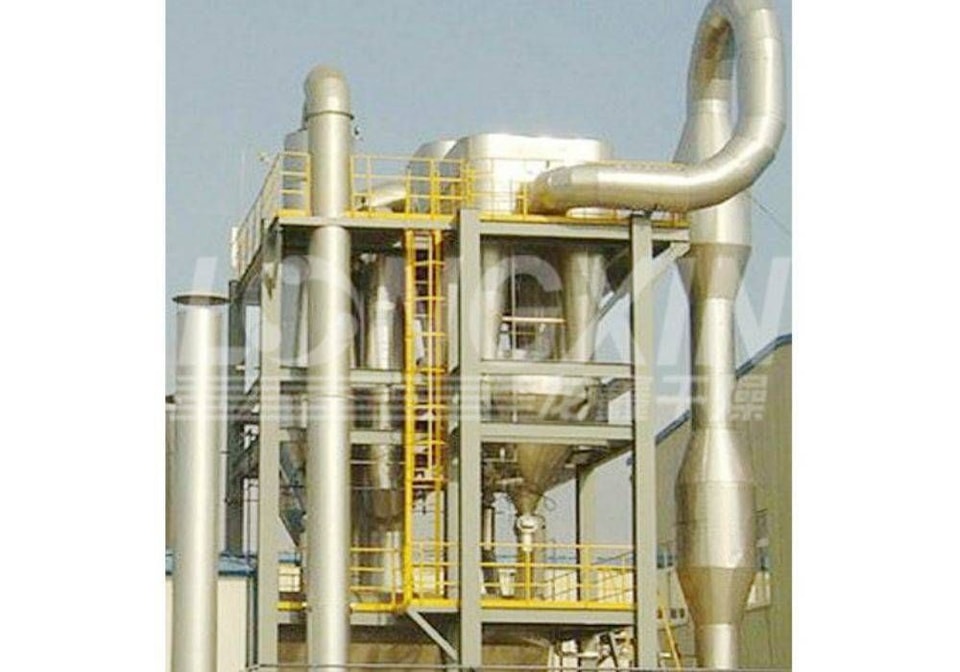

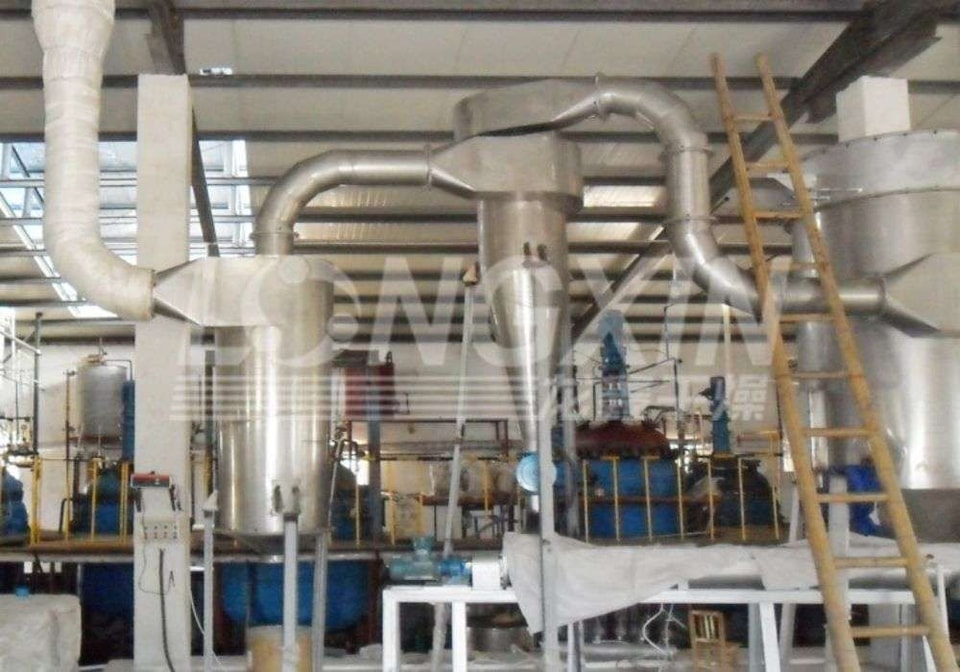

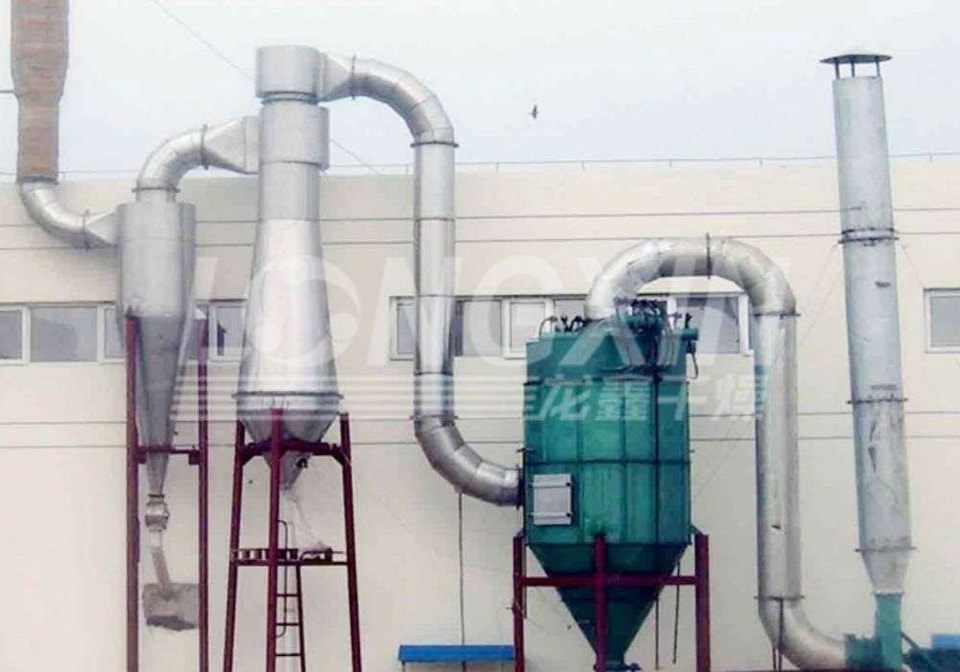

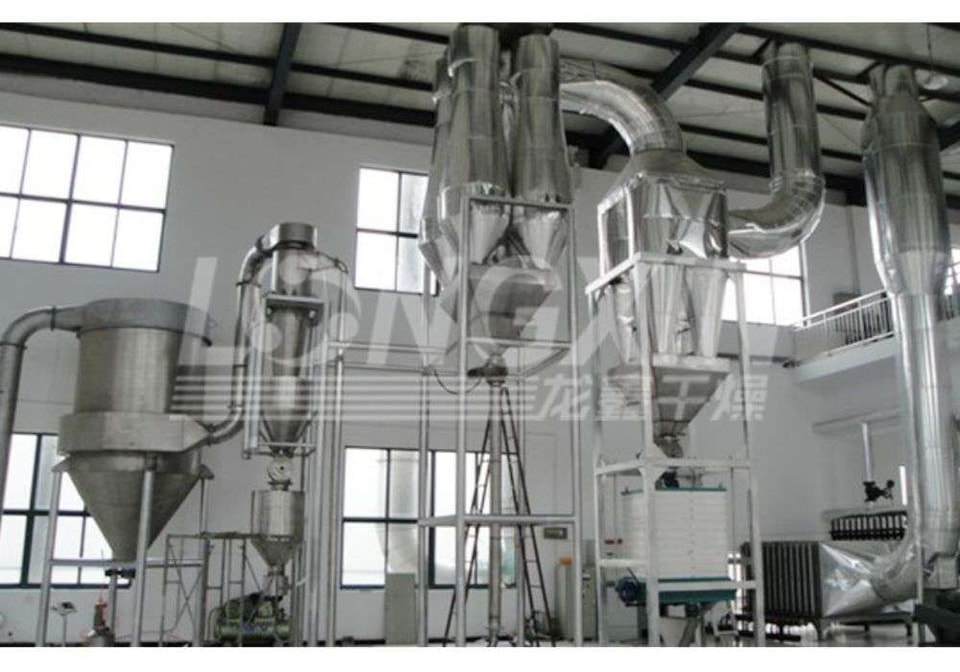

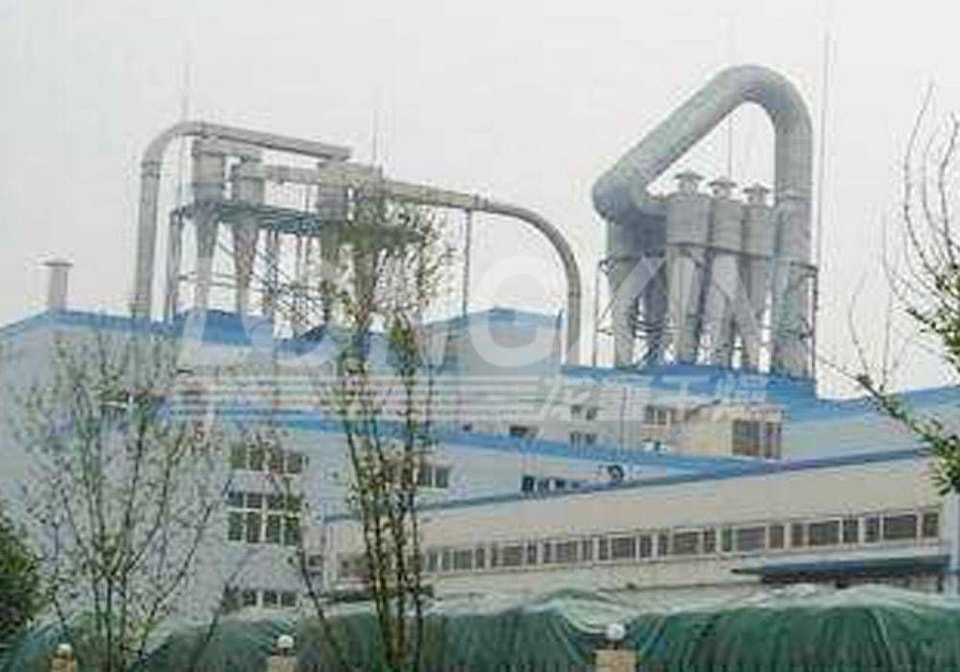

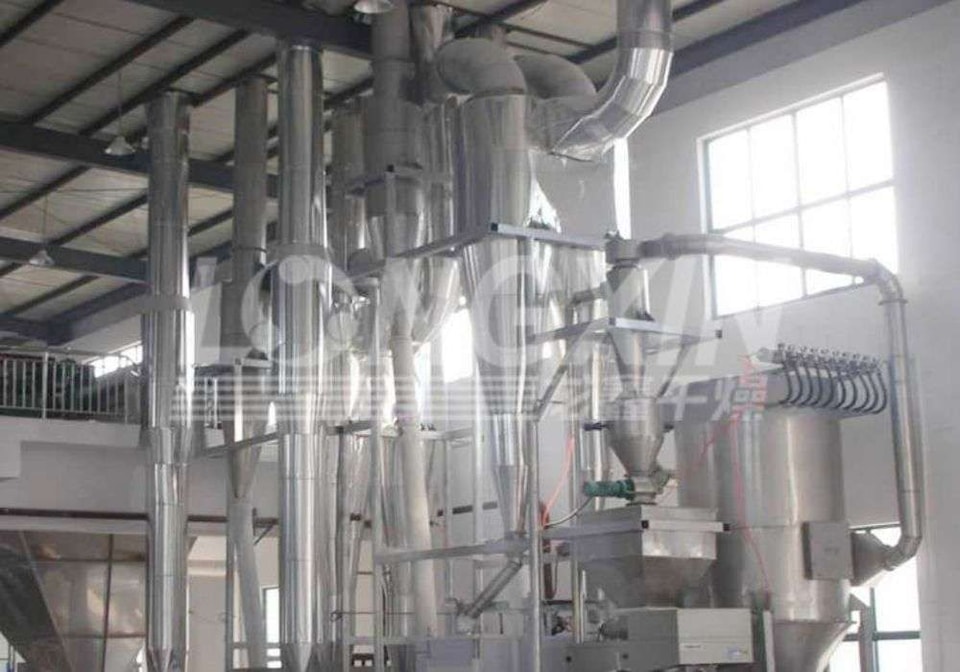

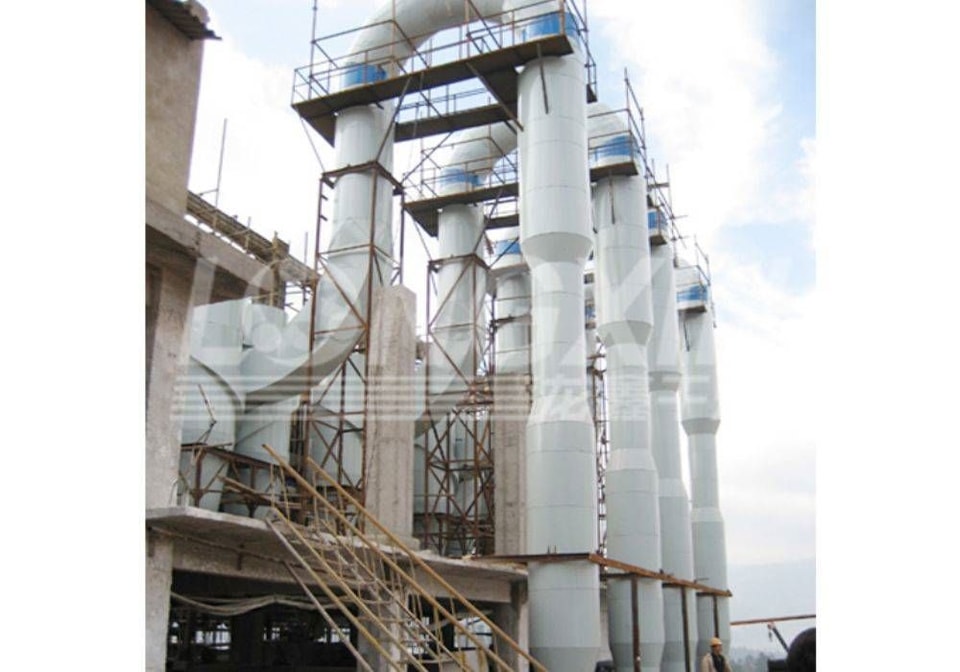

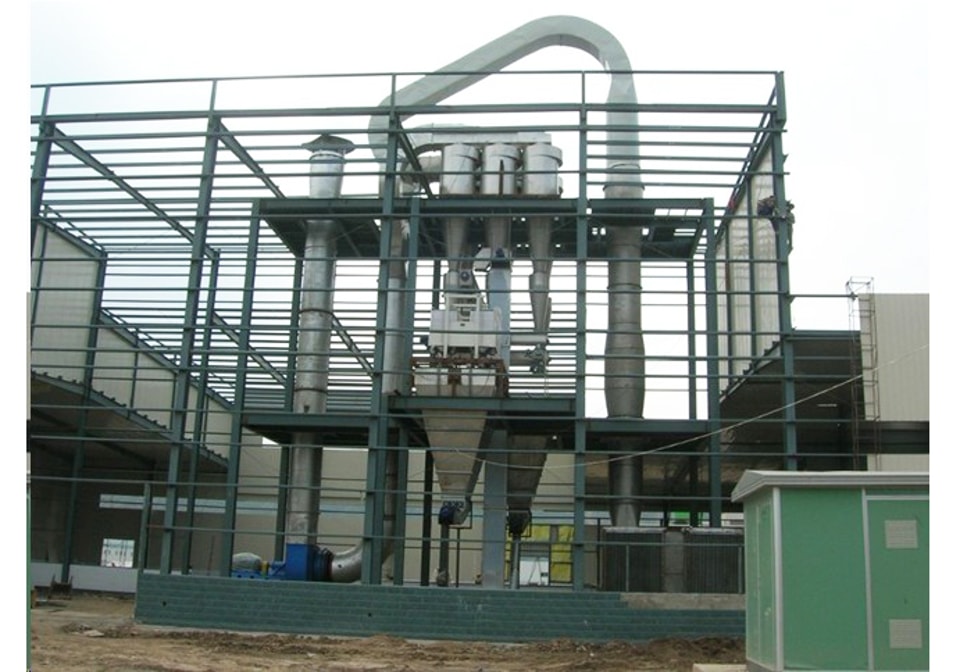

The JG series air dryer can quickly remove water (mainly surface water) from particles and powdered materials that are easily dehydrated. In air drying, the quality of the dried product is better controlled because of the short residence time of the material in the dryer. Our factory enhanced air drying is to add a set of speed can be stepless adjustment of the basic type of reinforcement, wet material through the screw feeder into the reinforcement and hot gas flow fully mixed, in the rapid rotation of the hammer break and push, the material is broken into fine particles, in the drying at the same time to move to the exit, and then attracted by the wind into the drying pipe, further uniform drying. Wet heavy particles that are not attracted by the wind continue to be crushed and dried until they can be picked up by the wind and enter the drying tube.
JG series air dryer is mainly used

This machine is especially suitable for the moisture content is relatively large, the wet material is paste, with other air drying methods can not dry the material, such as: White carbon black, vinyl acetate and vinyl chloride copolymer, acetate fiber floc, Catalyst, C.M.C., Ct-1 resin, gypsum, electrolytic manganese dioxide, ammonium anthraquinone sulfonate, fluorspar, diatomite, silica gel catalyst, bone powder, high soil, potassium ammonium perchlorate drugs, synthetic resin, active gluten, active clay, chemical filter cake, rutile type diamond powder, Sebacic acid, copper sulfate, aluminum sulfate, sodium sulfate, calcium phosphate, esterized starch phosphate, dyes, calcium citrate, coal slime In the shape of bread, rice bran, clay, clay cement, urea, bentonite, spherical clay, alumina hydroxide, barium hydroxide, calcium lactate, food, washed high territory, cyanic acid, gypsum oar, lime, biological products, carbon black, calcium carbonate slurry, sludge, organic chemicals aluminum stearate, iron oxide, organic fuel, corn protein feed, wet mud, mica powder, medicine Agent, pigment, potassium bichromate pulp, lees residue, etc.

JG series air dryer technical specifications

Model evaporation water kg/h
(calculated by surface moisture) Installed power kw covers an area m2 height m
JG 50 50 10 20 9
JG 100 100 20 32 11
JG 200* 200 31 40 11
JG 250 250 32 64 13
JG 500* 500 54 96 13
JG 1000* 1000 135 120 15
JG 1500* 1500 175 200 16
Note: Those with * are secondary drying, installed power and occupied area are calculated by steam heating.FG series air dryer

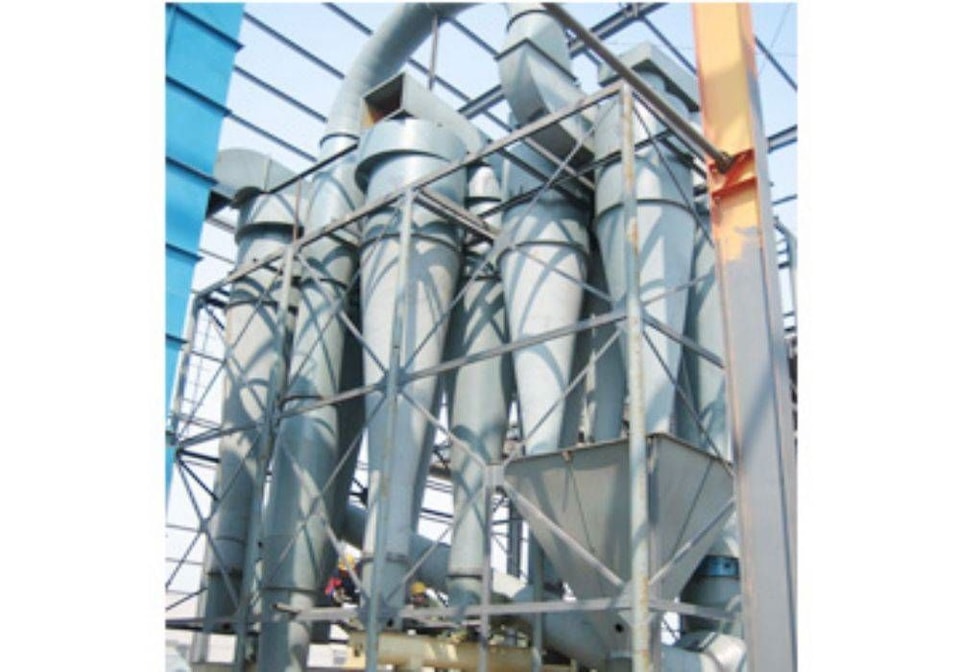

FG series air dryer working principle

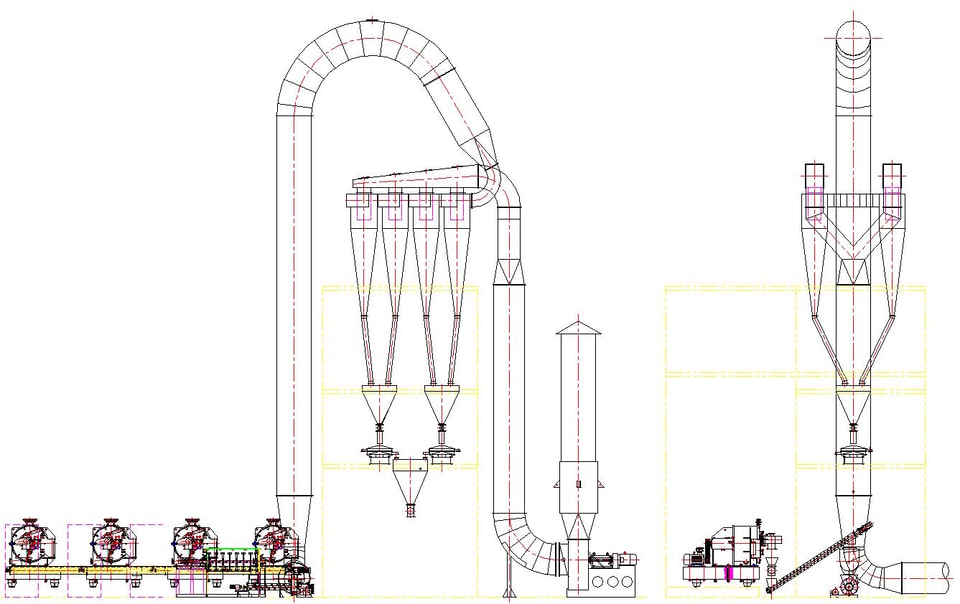

The working principle of FG series air dryer is to complete the drying of wet materials in two steps. The raw material is first dried by the mixture of secondary drying exhaust gas and supplementary hot gas, the high temperature and low humidity exhaust gas after use is discharged out of the machine, and the semi-finished product is dried by fresh hot air for secondary negative pressure drying. The finished product is measured and packaged after drying. The used high temperature and low humidity exhaust gas is used as a primary drying, so as to complete a good cycle drying process, and the supplementary hot air volume can be adjusted according to the need, so the machine has wide applicability.

Adaptive material
This equipment is widely used in food, chemical, pharmaceutical, building materials and other industries of powder, granular material drying. The products that have been dried with this series are: starch, glucose, fishing powder, sugar, sugar, wine tank, feed, gluten, plastic resin, coal powder, dye and so on.

FG series air dryer technical specifications

Model Evaporative moisture (kg/h) Installed power kw Occupied area m2 Thermal efficiency (%)
FG0.25 113 11 3.5x2.5 >60
FG0.5225 18.57x5 >60
FG0.9 450 30 7x6.5 >60
FG1.5 675 50 8x7 >60
FG2.0 900 75 11x7 >60
FG2.5 1125 90 12x8 >60
FG3.0 1150 110 14x10 >60
FG3.5 1491 110 14x10 >60
