Pressure Spray Drye
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

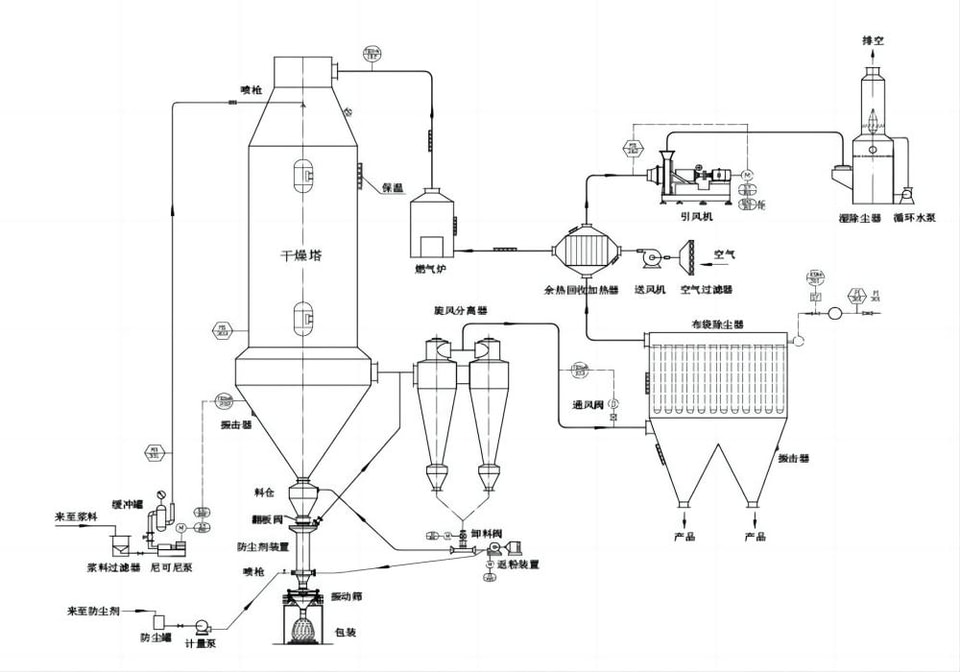

YPG series pressure spray drying machine is a device that can complete drying and granules at the same time. According to the process requirements, the pressure, flow, and spray holes of the liquid pump can be adjusted, and the required spherical particles are obtained as required. The work process of this unit is to enter the high -pressure input of the material solution through the diaphragm pump, spray the fog -shaped fluid droplets, and then drop with the hot air. The exhaust gas is discharged from the pump, and the powder is collected from the pollination tube located at the lower end of the whirlwind separator. The fan export can also be equipped with a secondary dust removal device, with a recovery rate of more than 96-98 %.

Features of pressure spray drying machine equipment
The pressure -type spray dryer is to five into the nozzle at the top of the tower body into a small fog, and the hot wind on the top of the tower is parallel to complete the drying. The machine has the characteristics of high dust rate, no sticky wall, energy saving and efficiency, etc., and is particularly suitable for the drying of thermal material. Widely used in food dyes, intermediates and other industries.
 ① Compared with the airflow, it greatly saves power consumption;
 ② The structure is simple and the manufacturing cost is low;
 ③ Simple operation, convenient replacement and maintenance;
 ④ Suitable for low viscosity materials, high viscosity materials are not easy to atomize;
 ⑤ Need a bureau to press chestnut, so there are certain restrictions on the use of wide rice;
 ⑥ The material to enter the nozzle must be strictly filtered.

Pressure spray drying machine adapting material
Chemical industry: white charcoal black, concrete exterior, sulfate, chromium sulfate, aluminum oxide, titanium oxide, kaolin, iron oxygen, carbide, fertilizer, dye, detergent, ACR auxiliary, gum, gum, gum, lactation, gum, lactation, gum, gum, gum, gum, gum, gum, gum, gum, lactation, gum, gum, gums, gums, gel proof, Water purification agent, resin, plastic, ice spar, etc.

 Food industry: paste, maltose, protein powder, egg yolk powder, hypoglycemia, granular oil, quick -soluble coffee, starch, spices, fruits and vegetables.

 Dairy industry: skimmed milk powder, whole milk powder, soy milk powder, ice cream powder, lactated powder, sodium coolete, etc.
 Medicine industry: Chinese and Western medicine powder, antibiotics, biochemical products, vitamin, pesticide powder, hydrolyzed protein, enzyme, monocyl protein, etc.

 Building materials industry: ceramic blank, glaze, ultra -fine powder, etc.
 Environmental protection: smoke desulfurization, papermaking black liquid and pharmaceutical waste liquid treatment.

Specification YPG-25 YPG-50 YPG-100 YPG-150 YPG-200 YPG-400 YPG-380 YPG-500 YPG-600 YPG-750 YPG-1000 YPG-2000
Inlet air temperature 140-550℃,Adjustable 140-550,Adjustable
Exhaust air temperature 70-110℃,Determined according to different products and processes 70-110,Determined according to different products and processes
Nominal water evaporation

25 50 100 150 200 300 400 500 600 750 1000 2000
heating method High-pressure steam, or steam + electricity, or various dyes (diesel, natural gas, liquefied gas or coal, etc.) High-pressure steam, or steam + electricity, or various dyes (diesel, natural gas, liquefied gas or coal, etc.)
Drying tower diameter (mm) 1200 1400 1600 2200 2600 3200 3500 3800 4100 4500 5500 7300
Dimensions            (m) 5×4×12 6×4×13 6×4×15 8×4.5×
10×5×20 12×6×22 According to specific requirements and workshop layout
Product yield 95-99.9%,Varies based on product features and configurations
