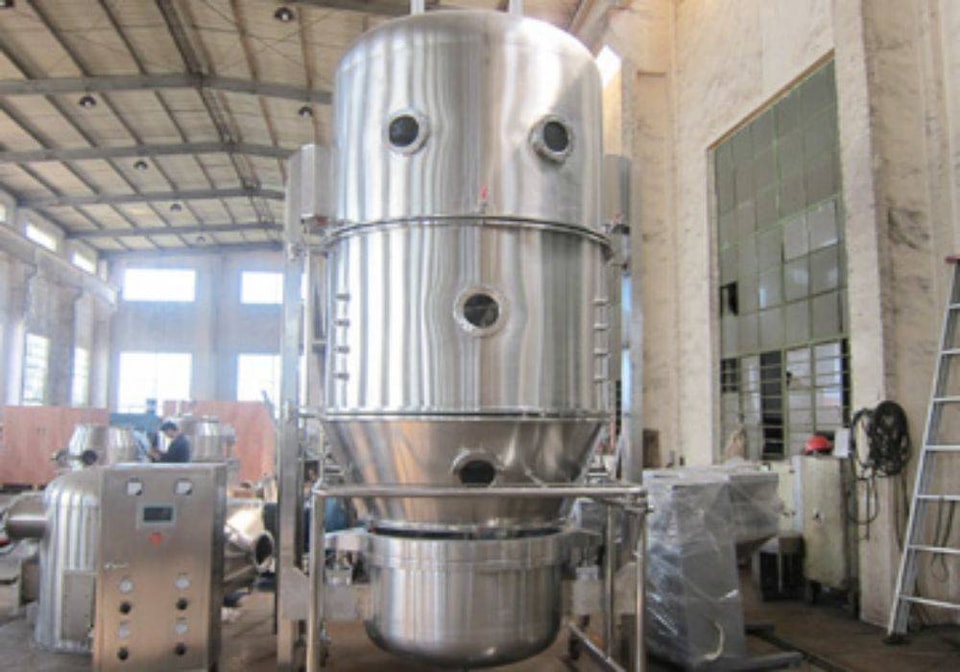

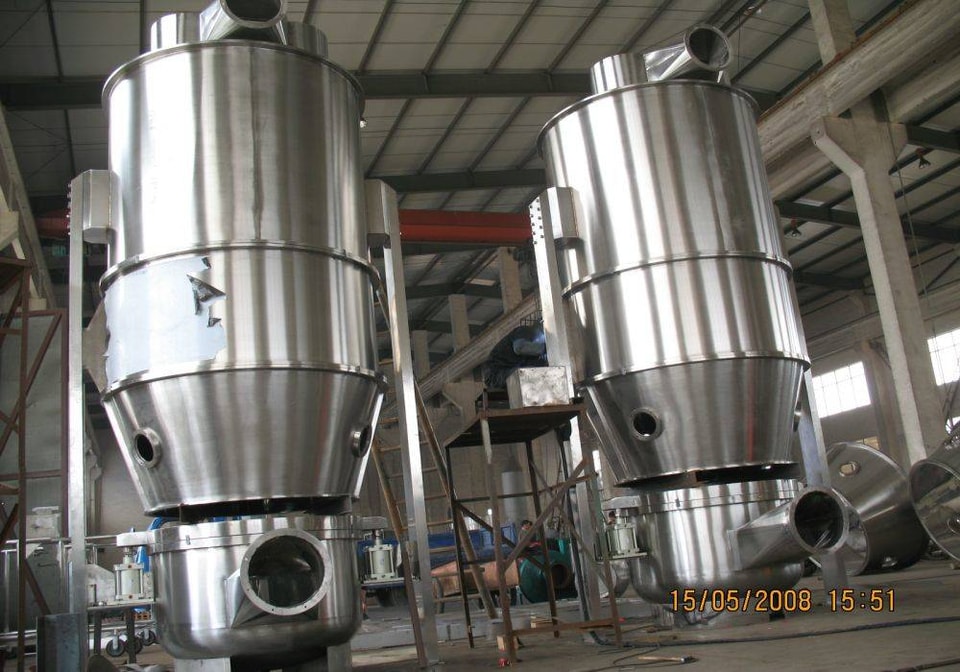

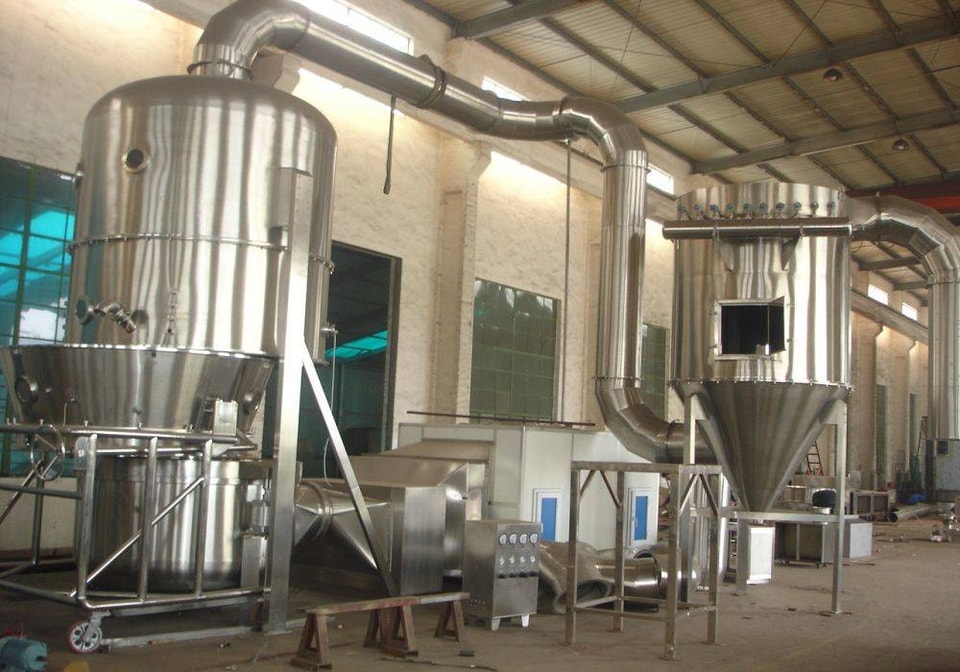

High efficiency fluid dryer

The GFG high -efficiency boiling dryer is designed in accordance with the principle of doubling, and the use of dry thermal medium to make solid particles for drying in the fluidization state is a fluidized bed dryer, also known as the boiling bed dryer.

The GFG -type high -efficiency boiling dryer is a new, high -efficiency dryer developed to adapt to the design of GMP pharmaceutical engineering, and it can be supported by a swing -type particle machine and GHL high -efficiency wet manner. The wider dried range of fluidization.

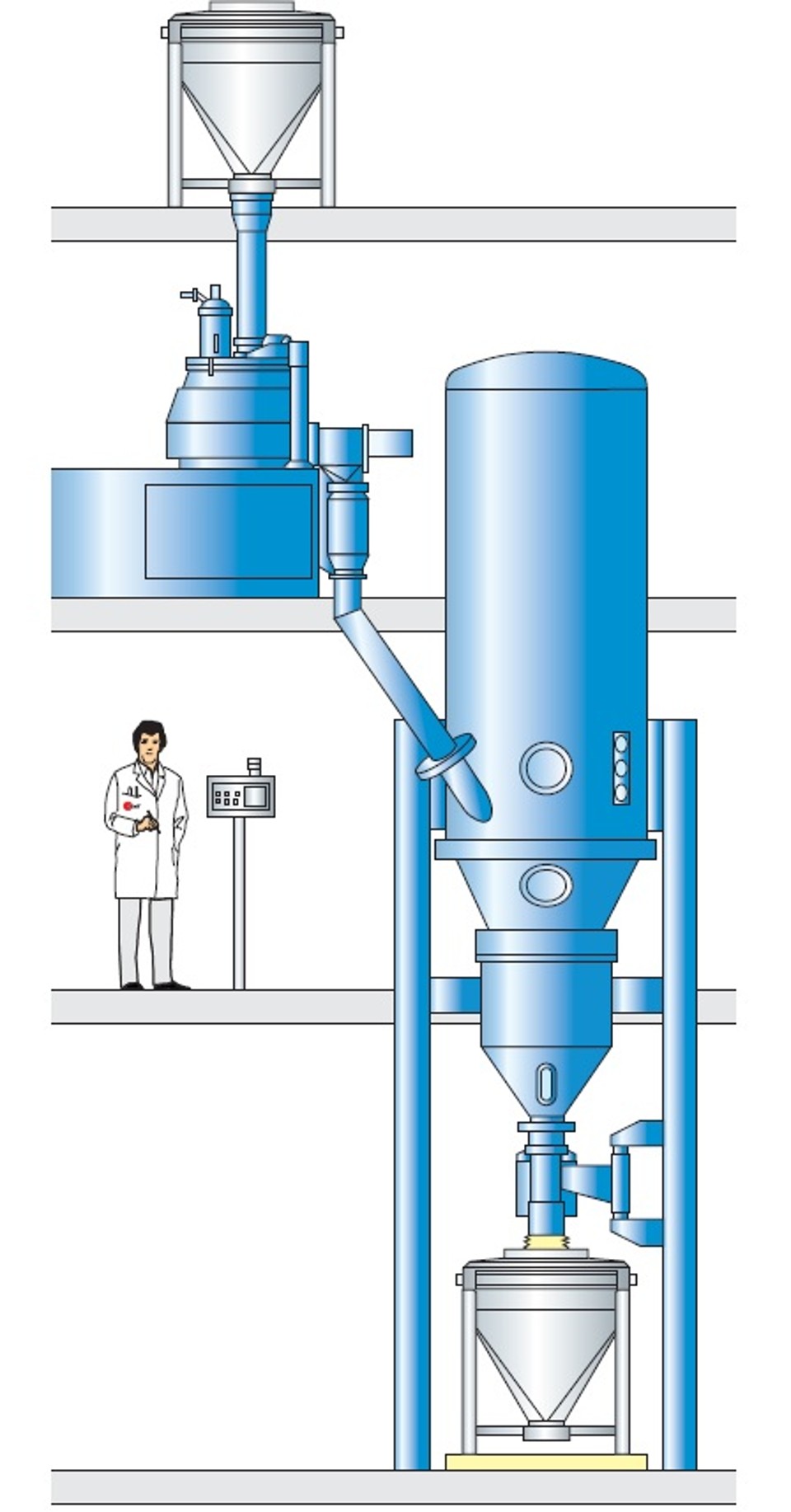

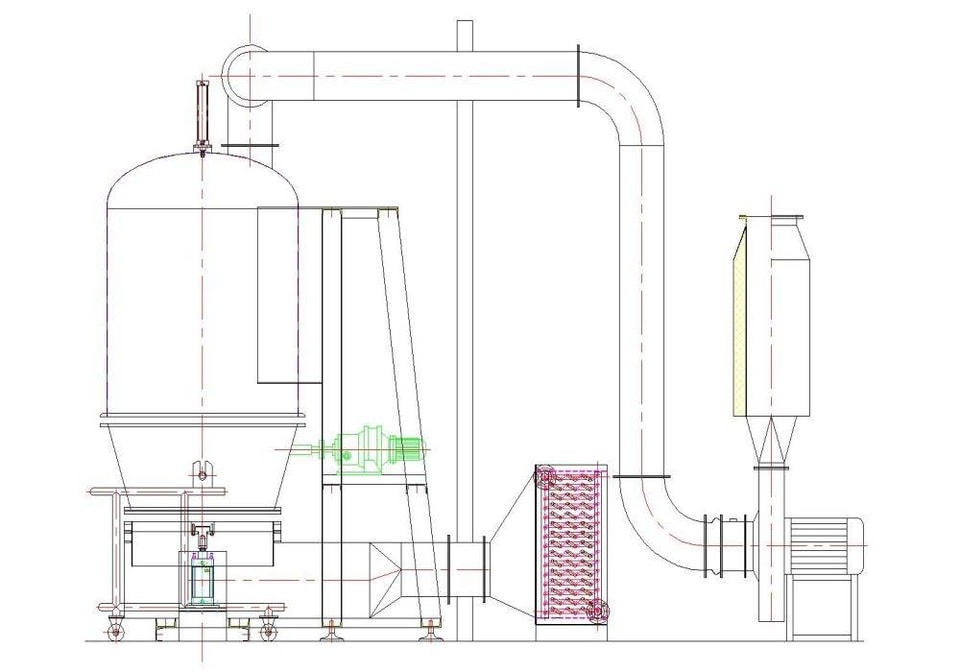

Working principle of high -efficiency boiling dryer
The material (particles or fine powder) to be dry into the drying of the dryer. After the air is removed by the filter (reaching 100,000 -level purification requirements), the temperature from the heater to the temperature required for drying, the hot air through the air distribution board at the bottom of the fighting fight, the air distribution board at the bottom of the fought Enter the main tower and contact the dry objects, so that the material flow in the bucket is removed and dry at the same time. After the water is volatilized, the wind is drained by the wind turbine with the wind turbine. The fine powder that rises with the wind during drying process is Captured by the cloth bag and returned the fluidized bed through the ash clearing device.

The GFG -type high -efficiency boiling dryer is set to a mixer at the bottom of the general fluidized bed dryer, and this mixer has a heating effect. It can not only stir the material, but also transmit heat to the material. It expands the range of materials suitable for darning and drying, so that it can be used for pink or granular materials that may be used in the process of feeding or in the process of drying and dehydration. For example, most of the materials separated from centrifuge have partial groups, and materials containing crystal water are easy to get in the process of drying. Another benefit brought by this improvement is that it can obtain uniform fluidization, which improves the intensity of thermal transmission.

Features of efficient boiling dryer equipment
 (1) This device uses a circular structural fight, without dead ends, the finished product is uniform, and the cleaning is convenient and thorough.
 (2) The anti -static special fiber cloth is used, the ash clearing effect is good, and it is safe and reliable.
 (3) The mixing device is set in the bed to avoid ditch flow or reunion, and the range of fluidization is wide.
 (4) The device has a explosion. Once the explosion is exploded, the equipment will not cause damage.
 (5) Dry in the sealing system, without leakage and dust flying.
 (6) The equipment is boiled through the material to achieve the purpose of dry water. Compared with the traditional dryer, energy saving saves time and time.

Applicable scope of efficient boiling dryer
The efficient boiling dryer is used for particles with a particle size of 0.1-6mm.
