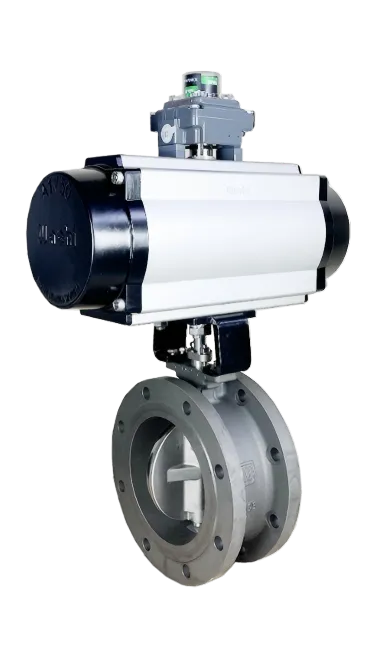

LXHQ pneumatic switch butterfly valve

Product Overview:

LXHQ pneumatic switch butterfly valve is a kind of automatic valve which uses compressed air as power source and uses pneumatic actuator to drive the butterfly plate to rotate 90 ° to realize rapid opening and closing of fluid. The utility model has the characteristics of compact structure, rapid operation, reliable sealing, wide application range and the like, and is suitable for the on-off control of liquid, gas, steam and other media in a pipeline system. Widely used in water treatment, petrochemical, power, pharmaceutical, food, paper, environmental protection and other industries.

Product features:

Quick opening and closing, 90 ° rotation control, suitable for automatic remote switch

Pneumatic actuator drive, simple structure, reliable action, fast response

Optional limit switch, solenoid valve, manual mechanism, position feedback and other accessories

Low flow resistance and high flow rate, especially suitable for big bore pipeline system

Optional soft seal (EPDM, PTFE) or metal seal, suitable for different working conditions

Wafer type, flange type, lug type and other installation methods are available.

Suitable for a variety of media, including water, air, oil, steam and corrosive liquids

Can be configured with explosion-proof, anti-corrosion and waterproof pneumatic actuators

Technical parameters:

Nominal diameter: DN50 ~ DN1200

Nominal pressure: PN6/PN10/PN16/ANSI 150LB ~ 300LB

Applicable temperature: -20 ° C ~ + 180 ° C (depending on the sealing material)

Valve body material: cast iron, ductile iron, carbon steel, stainless steel 304/316, PVC, etc.

Butterfly plate material: stainless steel, nodular cast iron, nylon coating, rubber lining, fluorine lining, etc.

Sealing material: EPDM, NBR, PTFE, FPM, metal seal

Actuator: Pneumatic actuator (double-acting or single-acting spring return)

Air source pressure: 0.4 ~ 0.7 MPa

Control mode: solenoid valve + limit switch box (with feedback)

Connection mode: Wafer type, flange type, lug type, etc.

Leakage Class: ANSI Class VI (soft seal)/Class IV (metal seal)

Application industry:

Petrochemical industry

Water and wastewater treatment

Food and beverage

Pharmaceutical manufacturing

Electric Energy

Papermaking and printing

Heating Ventilation and

Air Conditioning (HVAC) Application of Fast Cut-off in Automatic Control System
