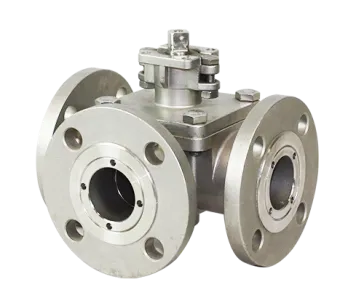

LXHQ-MT/LF Three-way T/L type full-bore flanged ball valve
Product Overview:
LXHQ-MT/LF three-way T/L full-bore flanged ball valve is a high-performance, multi-flow switching control valve. It adopts three-way ball core design. The flow channel can be combined according to "T" or "L" to flexibly realize the functions of medium confluence, diversion, reversing and switching. The full-diameter structure design ensures low flow resistance and high flow rate, and is convenient for installation and maintenance through flange connection. It is widely used in complex fluid control scenarios in petroleum, chemical, pharmaceutical, food, HVAC, water treatment and other systems.
Product features:
T-shaped/L-shaped ball core structure can realize combination switching of different flow directions
T type: three ports are interoperable, which can realize confluence, diversion and circulation control
L-type: two-port intercommunication, which can realize two-way commutation switching
Full diameter design ensures that the medium has no obvious flow resistance and small pressure drop
Flange connection, easy installation, reliable sealing, easy maintenance
Multiple drive modes, can be equipped with handle, electric and pneumatic actuators to realize automatic control
High quality sealing material, suitable for different working media (such as PTFE, reinforced PTFE, metal seal)
The valve body is made of various materials, such as carbon steel, stainless steel, etc., to meet different corrosion, temperature and pressure requirements
Compact structure, flexible operation and long service life
Technical Specifications:
Nominal diameter: DN15 ~ DN300 (more big bore can be customized)
Pressure rating: PN16 ~ PN40/ANSI 150LB ~ 300LB
Temperature range: -29 ° C ~ + 200 ° C (depending on valve body, seal material)
Valve body material: WCB, CF8, CF8M, CF3, CF3M, etc.
Connection mode: flange connection (GB/T 9113, ANSI B16.5 and other standards)
Driving mode: manual, electric, pneumatic
Application industry:
Petrochemical industry
Natural gas
The pharmaceutical industry
Food and beverage
Water treatment system
Air conditioning heating and ventilation (HVAC) system
Various industrial automation fluid control scenarios
