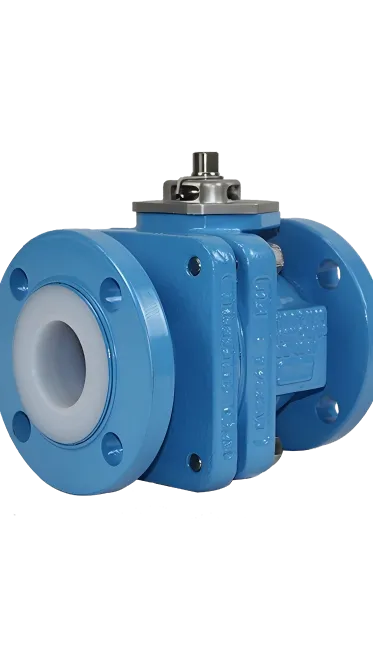

LXHQ-LBVF lined flanged ball valve

Product Overview:

LXHQ-LBVF lined flanged ball valve is a high-performance ball valve lined with anti-corrosion materials (such as PTFE, FEP, PFA, PO, etc.), which has excellent corrosion resistance and sealing performance. Full diameter ball core design, small flow resistance, flexible opening and closing, suitable for harsh conditions such as strong acid, strong alkali, organic solvent, strong oxidizing medium, etc. Flange connection is standardized and easy to install, which is widely used in chemical, pharmaceutical, food, environmental protection, water treatment and other industries.

Product features:

Fully lined anti-corrosion design for highly corrosive media

Full diameter structure, no medium retention, small flow resistance

Excellent sealing performance, flexible opening and closing, zero leakage

Flange connection, easy installation and maintenance

The valve seat can be soft seal or hard seal to meet the requirements of different working conditions

Leak-proof design to improve the overall reliability and service life of the valve

A wide range of material combinations to meet a variety of media conditions

Support multiple driving modes: handle, electric, pneumatic, etc.

Technical parameters:

Nominal diameter DN15 ~ DN300

Nominal pressure PN10/PN16/ANSI 150LB

Applicable temperature -20 ° C ~ + 180 ° C (depending on lining material)

Valve body material Carbon steel WCB/Stainless steel CF8/CF8M/Ductile iron

Lining material PTFE, FEP, PFA, PO, ETFE, PEEK, etc.

The ball is made of stainless steel and is coated or lined with PTFE, FEP and PFA.

Sealing material PTFE/RPTFE/PFA/FEP

Connection standard GB/T 9113/ASME B16.5/DIN EN1092-1

Leakage class per ANSI B16.104 Class VI (zero leakage)

Driving mode: manual, electric, pneumatic and hydraulic

Application industry:

Petrochemical industry

Fine Chemical Industry

The pharmaceutical industry

Food and beverage industry

Paper and textile industry

Water and wastewater treatment

Environmental Protection Engineering

Semiconductor industry

Paint and dyestuff industry

Trong acid and alkali storage and transportation system
