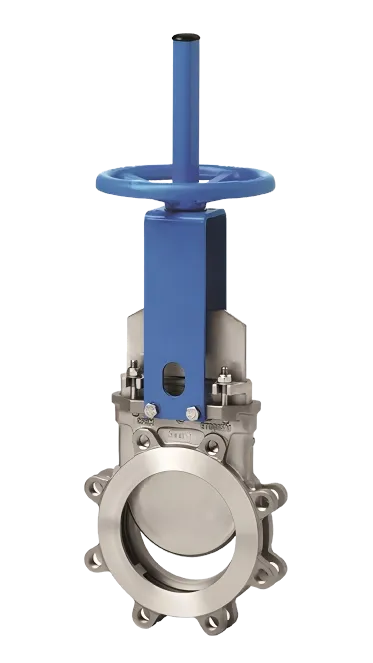

LXHQ Knife gate valve

Product Overview:

LXHQ knife gate valve is a kind of cut-off valve specially designed for media containing particles, slurry, fiber or powder. The valve plate is knife-shaped, which can cut off or scrape off the media. It is suitable for working conditions requiring low pressure, frequent opening and closing, viscous media and easy blockage. With compact structure, convenient opening and closing and small space occupation, it is an ideal cut-off equipment for paper pulp, sewage, coal slime, ore pulp, chemical slurry, grain transportation and other industries.

Product features:

Knife-gate design with shear function for cutting solid or fibrous media

Compact structure, small occupied space, suitable for narrow installation environment

Easy to open and close, suitable for frequent operation

Reliable lower sealing structure to prevent medium deposition or jamming

Two-way seal optional, supports two-way pressure-tight shutoff

Multiple driving modes: manual, pneumatic, electric and hydraulic

The valve body can be provided with a slag outlet, which is convenient for cleaning and maintenance.

Suitable for a variety of materials: carbon steel, stainless steel, cast iron, wear-resistant alloy, etc.

Applicable to low pressure working condition (generally ≤ 1.6MPa)

Technical parameters:

Nominal diameter: DN50-DN1600

Nominal pressure: PN6/PN10/150LB (can be customized higher)

Applicable temperature: -20 ° C ~ + 300 ° C (depending on material and sealing)

Valve body material: carbon steel, stainless steel 304/316, nodular cast iron, wear-resistant alloy, etc.

Valve plate material: stainless steel, alloy steel, wear-resistant steel, surface coating ceramic or PTFE

Sealing material: NBR, EPDM, PTFE, metal hard seal, flexible graphite, etc.

Connection type: Wafer type, flange type, lug type

Driving mode: hand wheel, chain wheel, electric, pneumatic, hydraulic, etc.

 Leakage class: ANSI B16.104 Class IV ~ VI (soft seal)

Application industry:

Paper industry (pulp, black liquor, white water pipeline)

Mining industry (discharge of ore slurry, coal slurry and tailings)

Chemical industry (resin, slurry, crystallization medium)

Water Treatment (Sludge, Sediment, Reuse Water System)

Thermal power industry (desulfurization and denitration slurry system)

Grain and feed industry (powder and particle cutting)

Iron and steel, metallurgy (slurry water, slag water system)

Seawater transfer or brine system
