Product Overview:

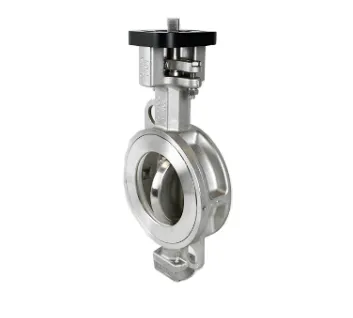

LXHQ-HG double eccentric high performance butterfly valve is a high performance sealing butterfly valve with double eccentric structure design. The valve plate can be quickly separated from the sealing ring in the opening process, so that the abrasion is reduced, the sealing service life is prolonged, and the valve plate is widely suitable for fluid control under high temperature, high pressure, strong corrosion and severe working conditions. The double eccentric structure overcomes the shortcomings of fast wear and large opening and closing torque of the traditional central line butterfly valve sealing pair, and has more excellent opening and closing flexibility and long-term sealing performance. This series of butterfly valves are widely used in petroleum, chemical industry, electric power, metallurgy, papermaking, pharmacy, shipbuilding, food and other industries, suitable for the regulation and cut-off of steam, oil, gas, corrosive medium, slurry and other media.

Product features:

Double eccentric design, easy to open and close, reduce the wear of seal ring and prolong the service life

Metal seal/soft seal is optional to meet the requirements of different media and working conditions.

Excellent flow performance, small flow resistance, good flow characteristics

High strength valve body structure, suitable for high pressure/high temperature working conditions

Leak-proof design of shaft seal, which can realize zero leakage sealing grade

Compact structure, light weight, easy installation and maintenance

Multiple drive options: manual, electric, pneumatic, hydraulic It can be installed horizontally or vertically to flexibly adapt to the pipeline layout.

Applicable to two working conditions of regulation and switching

Technical parameters:

Nominal diameter: DN50 ~ DN2000

Pressure rating: PN10/PN16/PN25/PN40/ANSI 150LB/300LB

Operating temperature: -29 ° C ~ + 425 ° C (metal seal)/-20 ° C ~ + 200 ° C (soft seal)

Valve body material: carbon steel WCB/stainless steel CF8, CF8M/duplex steel/alloy steel, etc.

Valve plate material: stainless steel, alloy steel, special corrosion-resistant alloy, etc.

Sealing material: PTFE/reinforced PTFE/metal hard seal/special elastomer

Connection mode: flange connection, butt clamp connection, lug type butt clamp

Actuator: handle, electric actuator, pneumatic actuator, hydraulic actuator

Leakage class: ANSI B16.104 Class VI (soft seal)/Class IV ~ V (metal seal)

Application industry:

Chemical

lietrochemical

Oil & gas

Steam

Food & Beverage

Machinery & Equipment .

Air conditioning facilities

Toxic and lethal.

General liiliing
