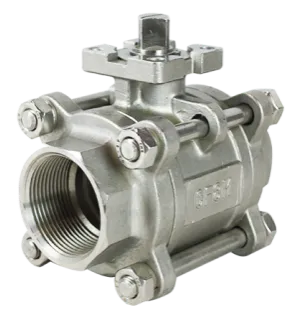

LXHQ-03T/M3T Three-piece fully-through-diameter high-platform flanged ball valve

Product Overview:

LXHQ-03T/M3T three-piece full-bore flanged ball valve adopts three-section bolt assembly structure, which is convenient for online maintenance, disassembly and washing. Full bore design ensures maximum flow capacity and low pressure loss. The valve body incorporates an ISO 5211 high platform, which allows the installation of electric or pneumatic actuators without brackets for automated control. It is suitable for fast opening and closing control of various liquid, gas, steam and other media, and is widely used in chemical, petroleum, natural gas, water treatment, electric power, pharmaceutical, paper and other industries.

Product features:

Three-piece structure: the middle body can be disassembled to facilitate online maintenance and replacement of seals

Full diameter design: minimum flow resistance to ensure system efficiency and flow capacity

Flange connection: standardized interface, good sealing and firm installation

High platform design: ISO 5211 for easy actuator mounting (bracket free)

Anti-blow-out valve stem structure to improve operation safety

Anti-static device, locking device (optional), lifting operation safety

The valve seat is made of PTFE/RPTFE, with optional metal hard seal, suitable for various working conditions.

Suitable for bi-directional fluid sealing to support horizontal or vertical installation

Can be equipped with handle, electric or pneumatic drive, to achieve intelligent control

Technical parameters:

Nominal diameter: DN15 ~ DN200 (1/2 "~ 8")

Nominal pressure: PN16/PN25/PN40/ANSI 150LB ~ 300LB

Applicable temperature: -20 ° C ~ + 200 ° C (depending on the sealing material)

Valve body material: stainless steel CF8/CF8M (304/316), carbon steel WCB, dual-phase steel, etc.

Ball material: stainless steel precision polishing, anti-corrosion and wear-resistant

Sealing material: PTFE, RPTFE, PPL, PEEK, metal hard seal

Connection mode: flange connection (GB/ANSI/DIN/JIS standard)

Driving mode: handle, electric, pneumatic, hydraulic

Design standard: API 608/ASME B16.34/GB/T 12237.

Test standard: API 598/EN 12266 -1

Degree of protection (electric/pneumatic): IP67/IP68/Exd II CT6 (optional)

Application industry:

Chemical

Oil & gas

Steam

Food & Beverage

The engineering vehicle

Machinery and equiliment

Air conditioning facilities

Toxic and lethal

General liiliing
